System

Double movement mechanism

null

High Tech System

null

Patented by Altaflex S.r.l.

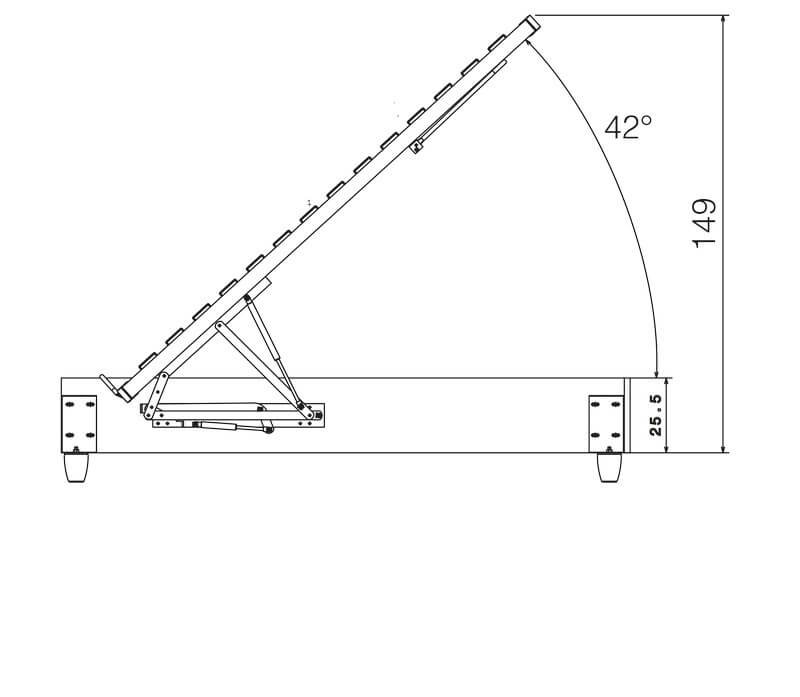

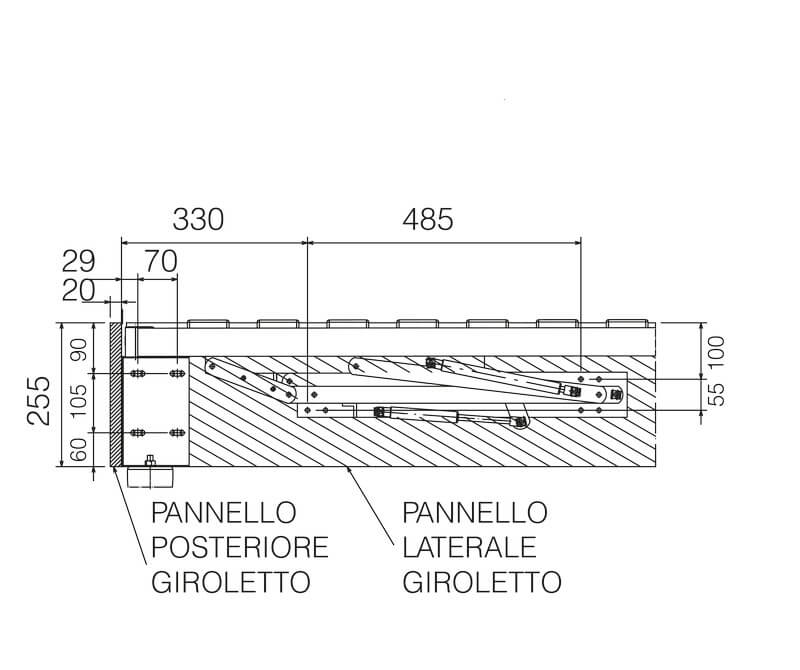

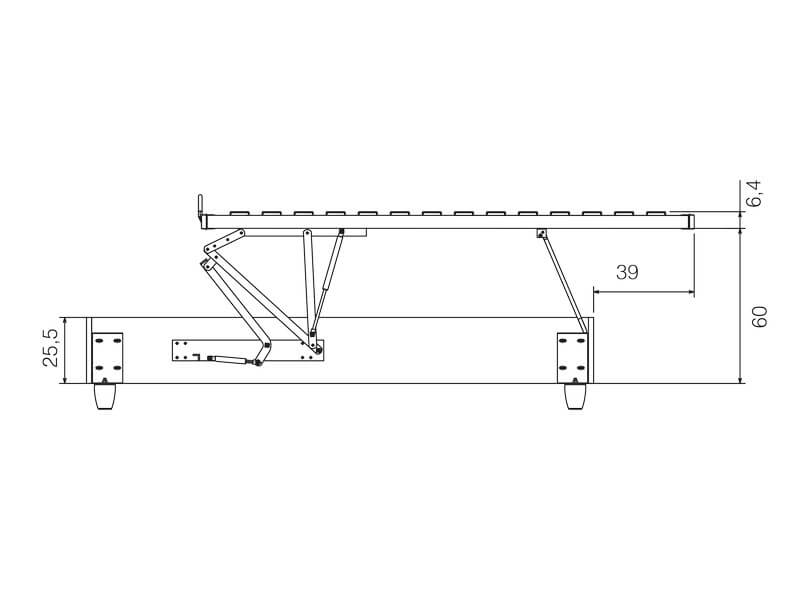

BED MECHANISM

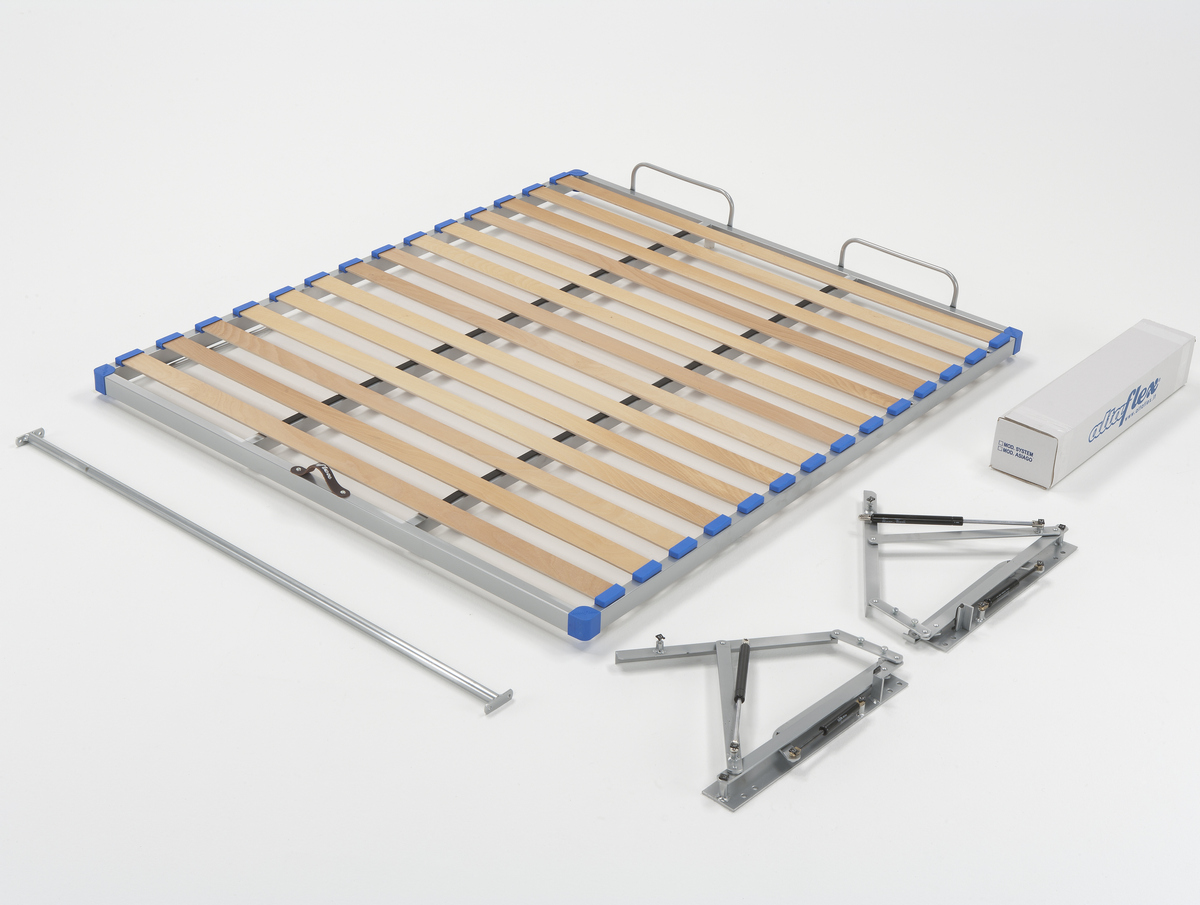

The System bed base, thanks to its patented cinematic and to the use of gas pistons, lifts by a simple move that allows making the bed in a comfortable and easy way  At the middle-position of the bed, it is possible to have a free access to the floor.  The tubolar steel frame of 50x30mm has a sleeping surface made of 14 multilayer beech wooden slats, 68×8 mm each, that are fixed with nylon supports.

Two tubolar steel slats 40×30 mm, used to reinforce the bed, and the anticreaking pads, guarantee a strong support.

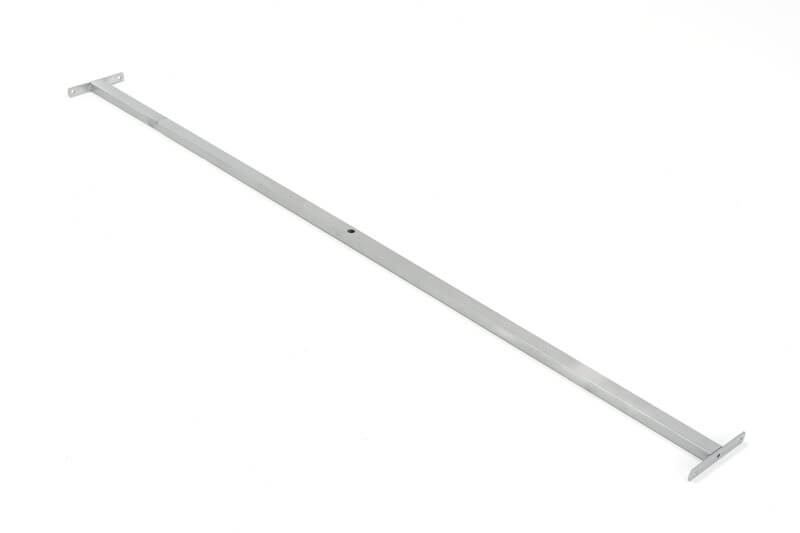

CROSSBAR FOR CONTAINER

Art. 03300/T – lung.=A+3 cm

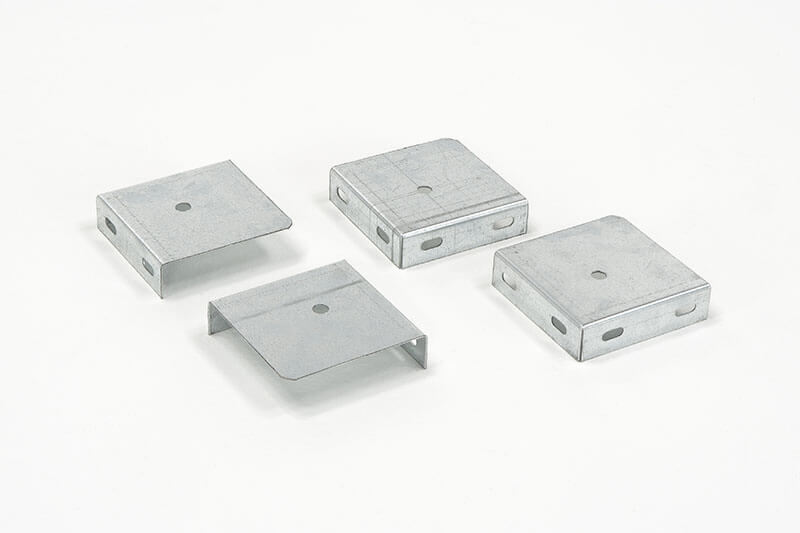

UNIVERSAL ANGULAR KIT

Art. 02114/ANG/UNI

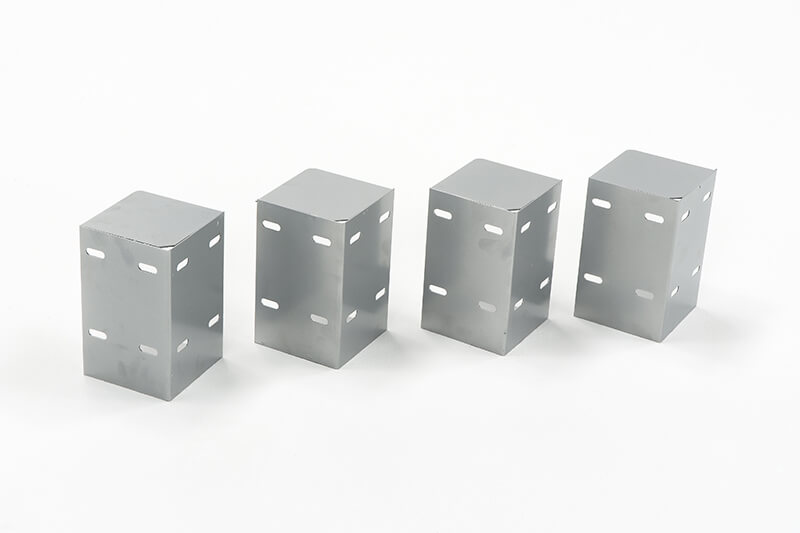

HIGH ANGULAR KIT

Art. 02114/ANG/ALT

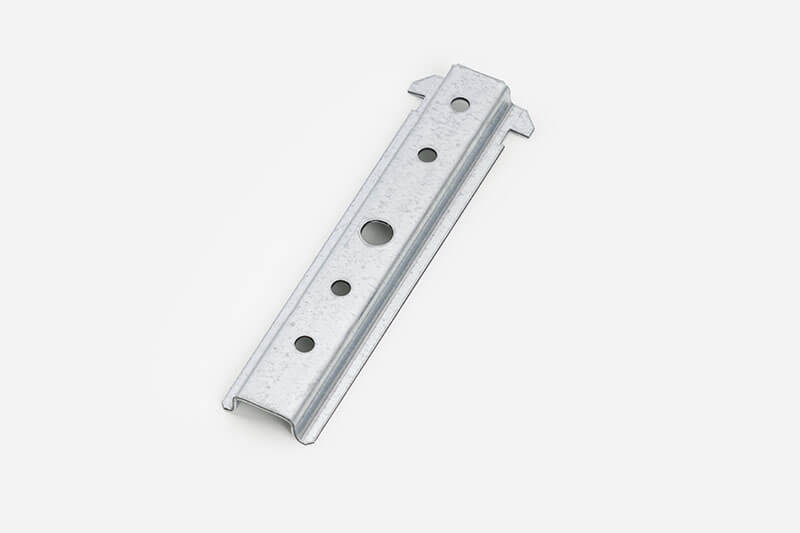

BAYONET M/F

Art. 02106 BF
Art. 02106 BM

CROSSBAR
CROSSBAR FOR CONTAINER

Art. 03300/T – lung.=A+3 cm

ANGULARS
UNIVERSAL ANGULAR KIT

Art. 02114/ANG/UNI

HIGH ANGULAR KIT

Art. 02114/ANG/ALT

BAYONET
BAYONET M/F

Art. 02106 BF
Art. 02106 BM
