Raffaello

Raffaello

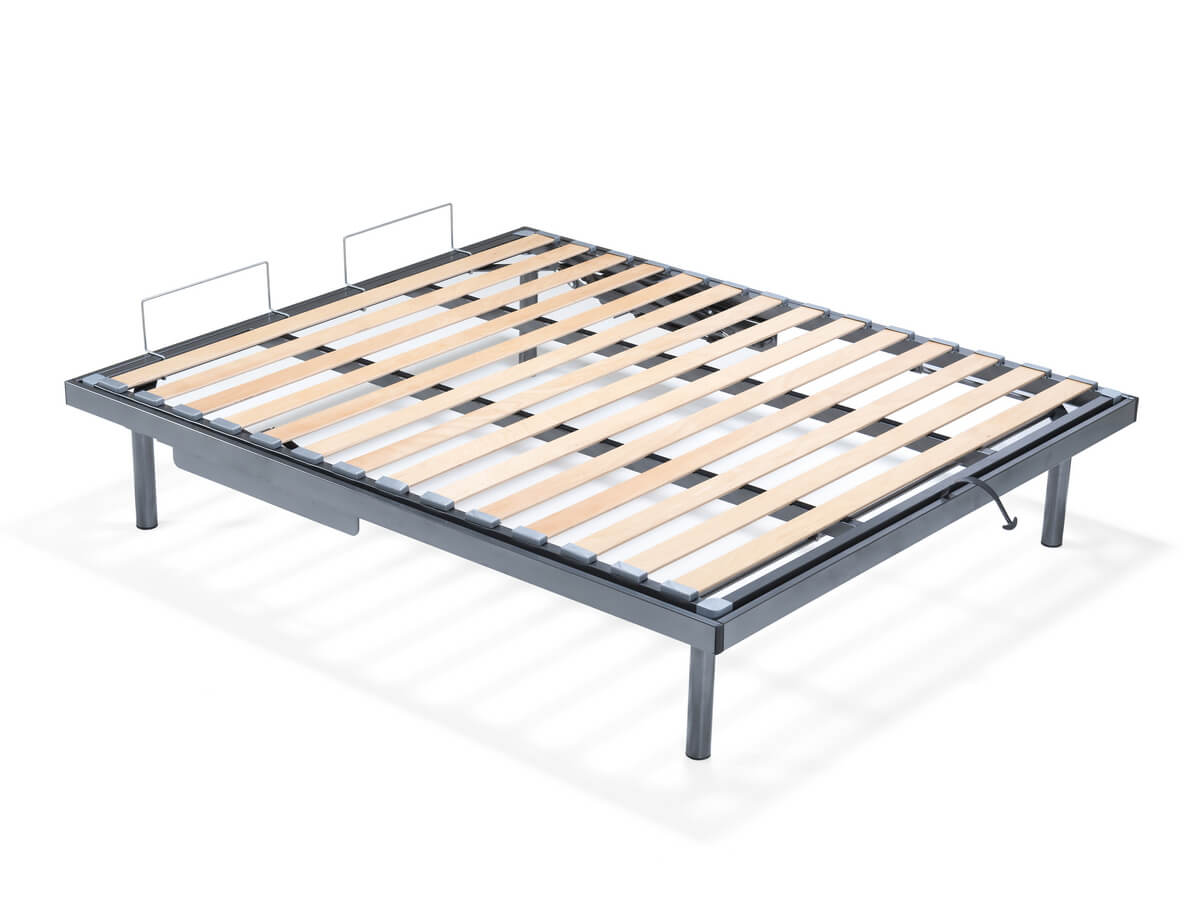

Two-movement mechanism with frame also available in a single version with side opening.

50X30MM TUBULAR STEEL FRAME (in the double version, two 40x30mm steel tube reinforcement crossbars)

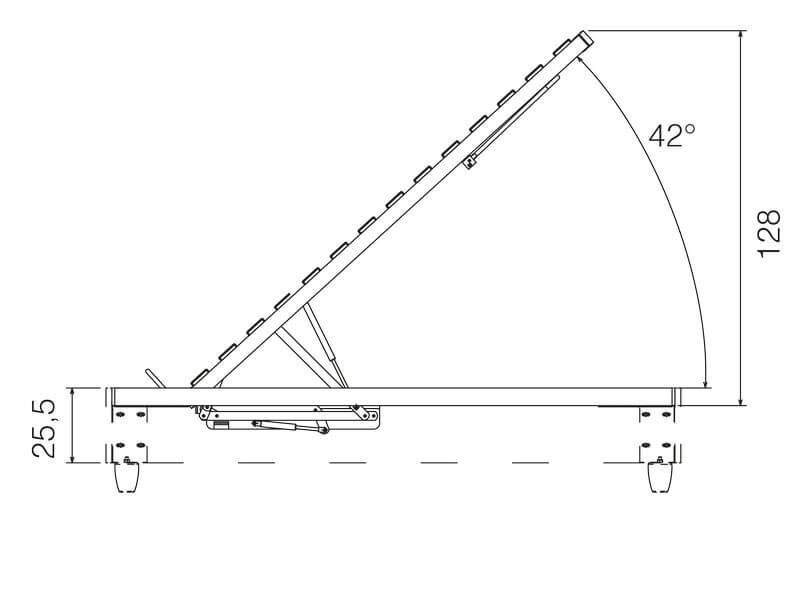

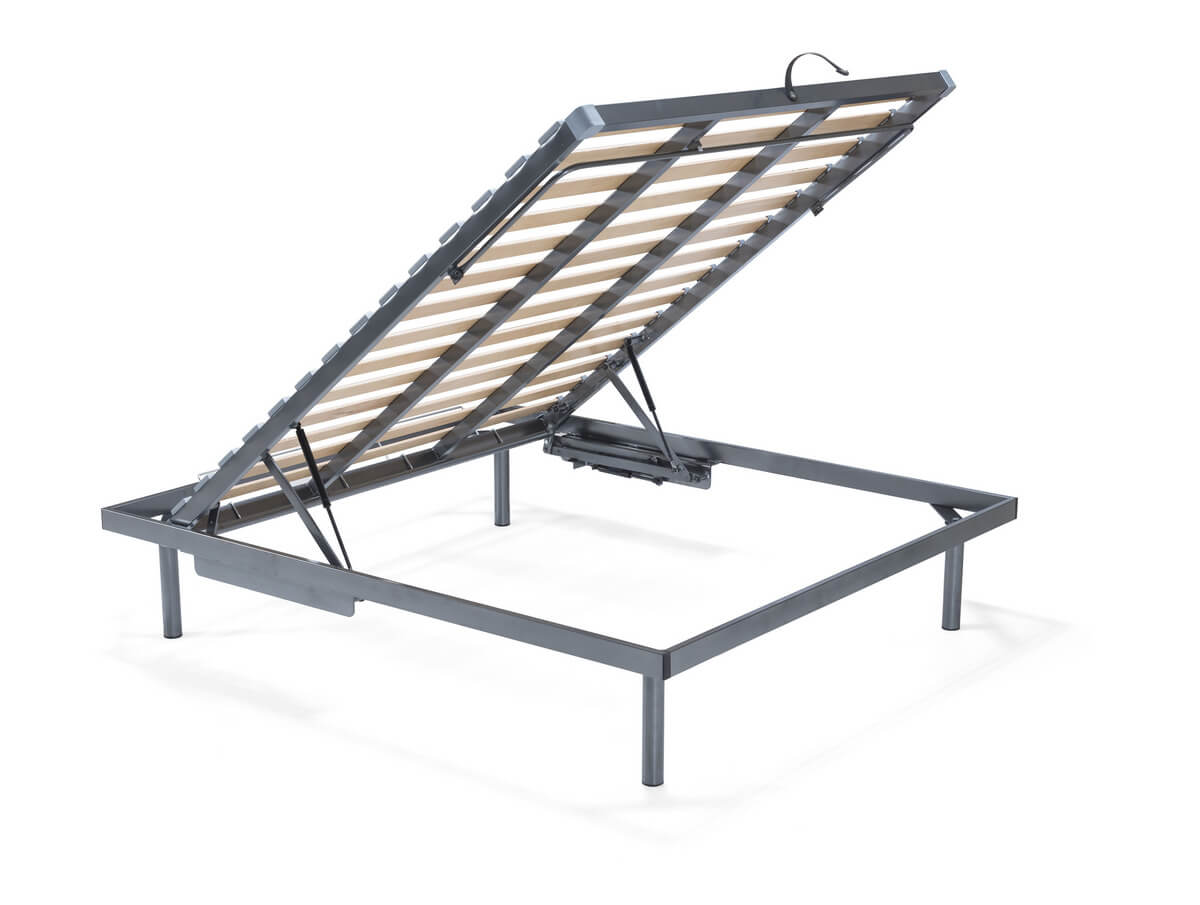

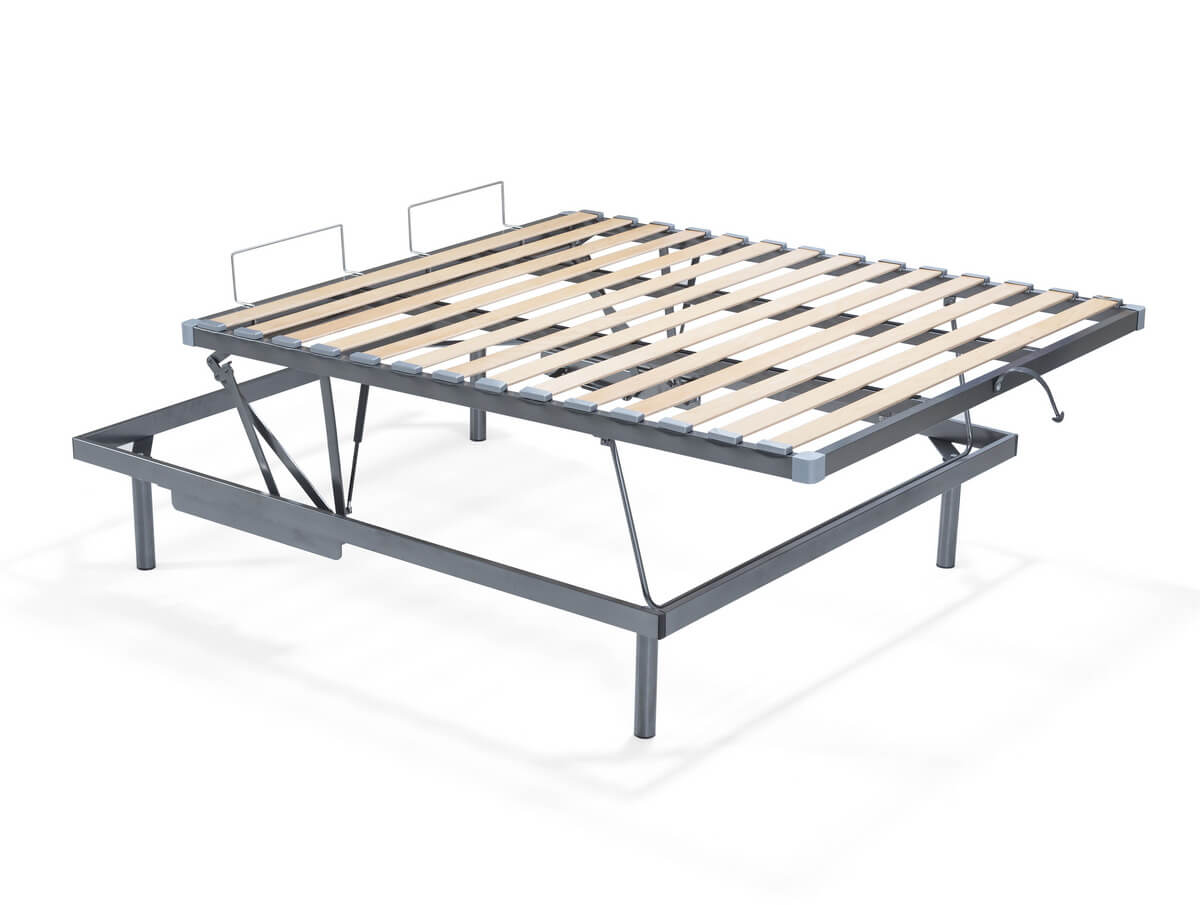

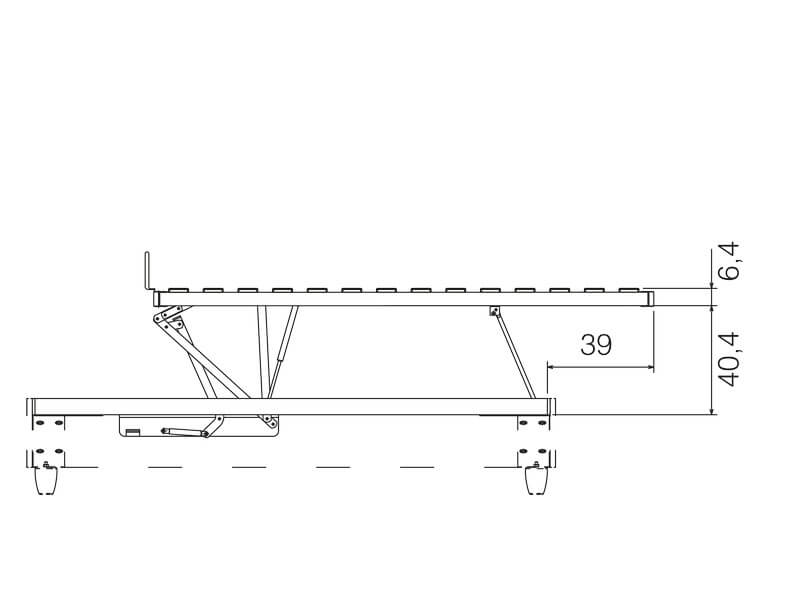

The Raffaello model, thanks to the patented kinematics and the use of gas pistons, allows the bed to be raised with a simple gesture, for easy and comfortable rearrangement. In the intermediate position, however, the bed is positioned in such a way as to have free access to the floor, thus allowing easy and quick cleaning. Furthermore, thanks to the double frame, the Raffaello model is self-supporting, therefore allowing it to be placed in existing beds. The feet have a diameter of 50 mm available in various heights.

BED SUPPORT: 14 pairs of 68×8 mm beech plywood strips
SUPPORTS: Single anticreaking nylon supports

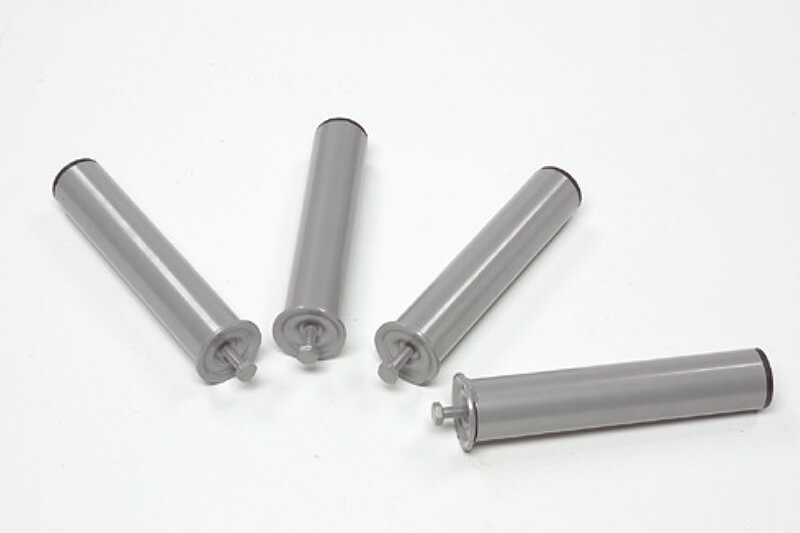

FEET: feet available in heights 25/30 cm, diameter 50 cm, included in the price.
