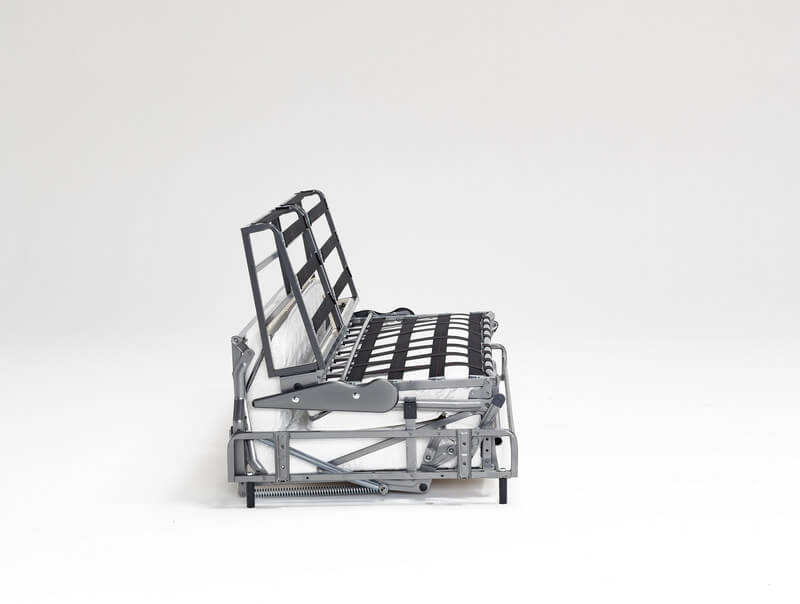

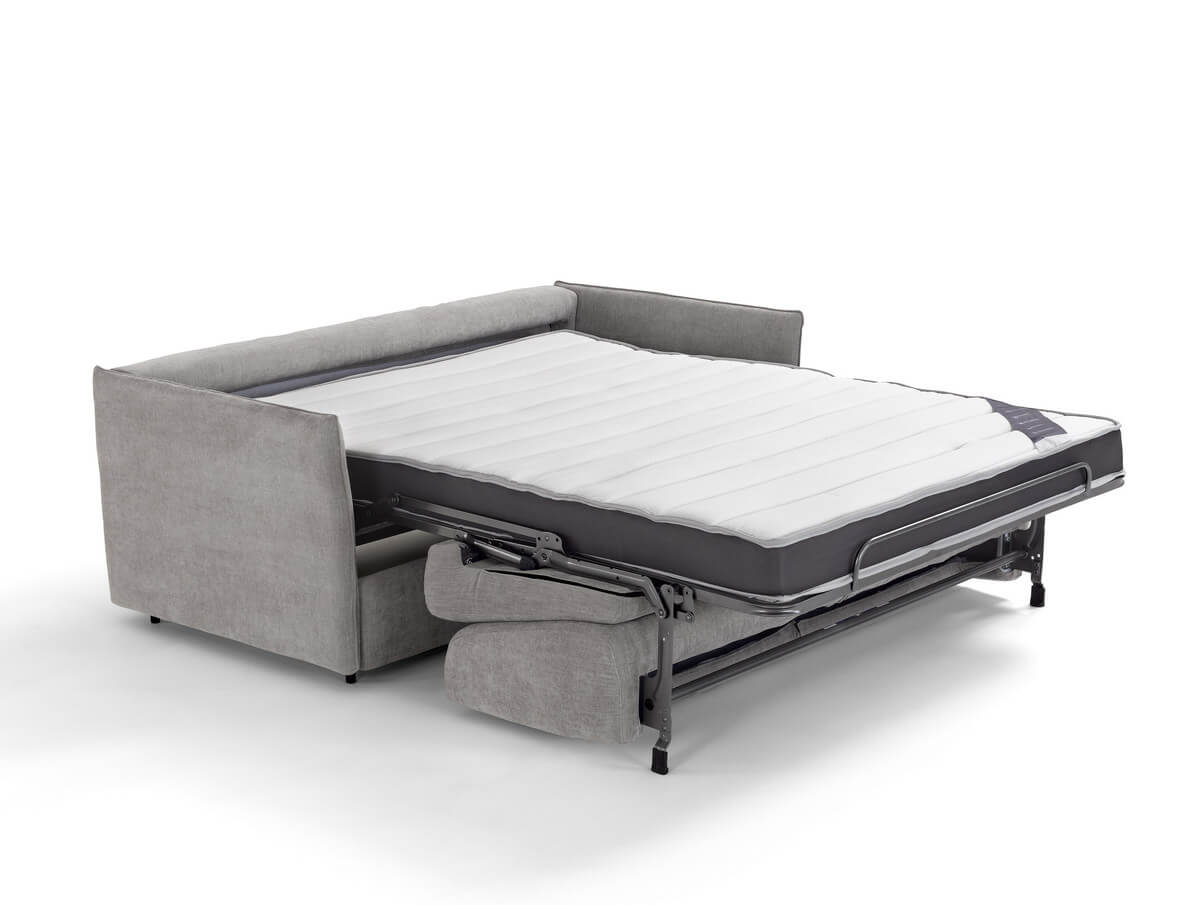

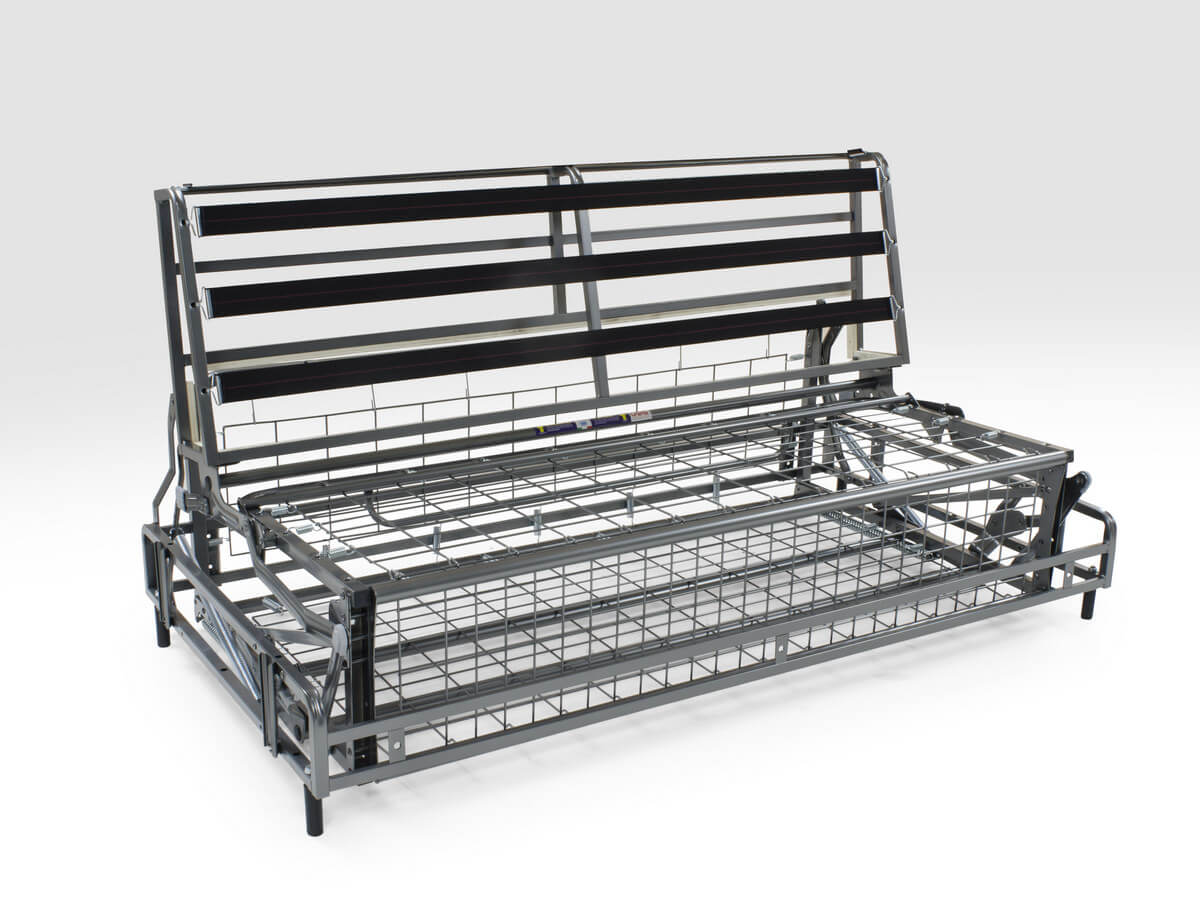

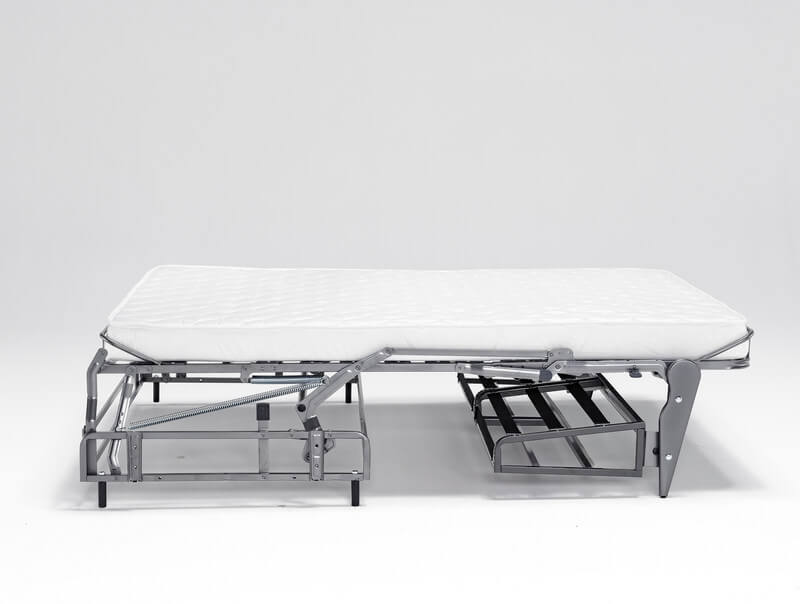

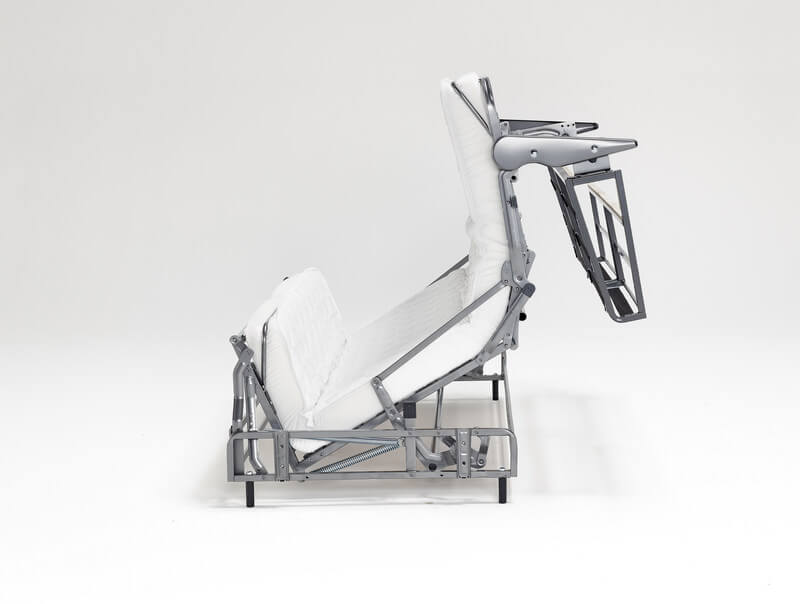

An insertion mechanism with a simple, single opening system that makes it possible to leave the seat and back cushions in place on the sofa. The mechanism has bayonet joints that make assembly and disassembly of the sofa (armrests, back, front panel) easier and which solve handling problems during transport.

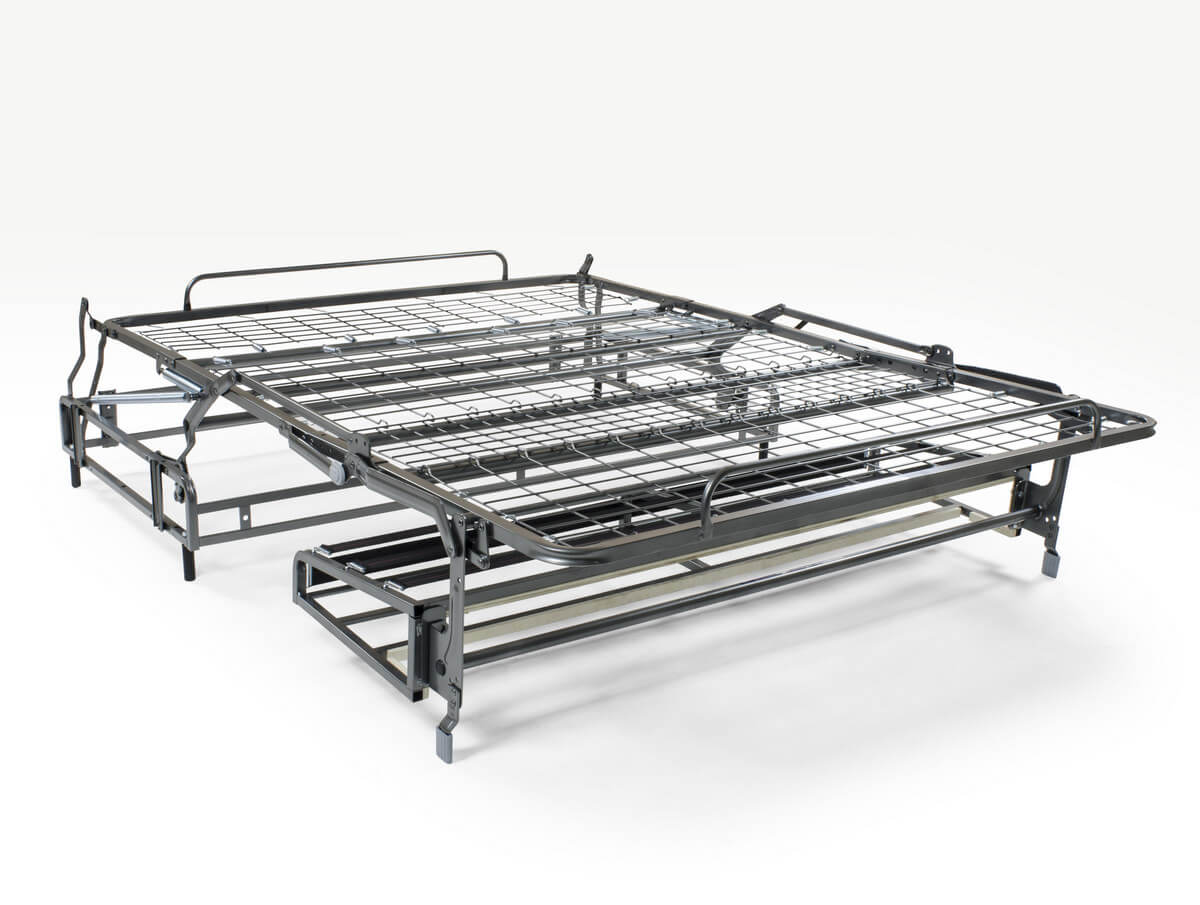

Ultrastrong frame in furniture tubing painted with epoxy powders. Sleeping surface with base in fuse-bonded steel and elastic straps.

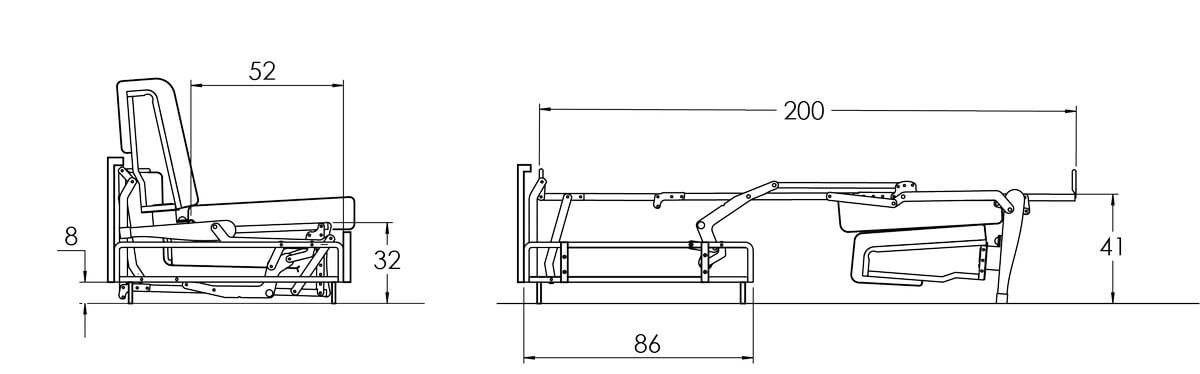

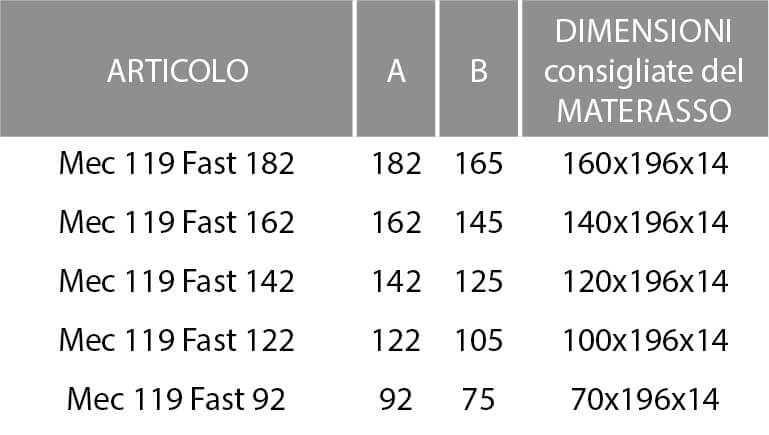

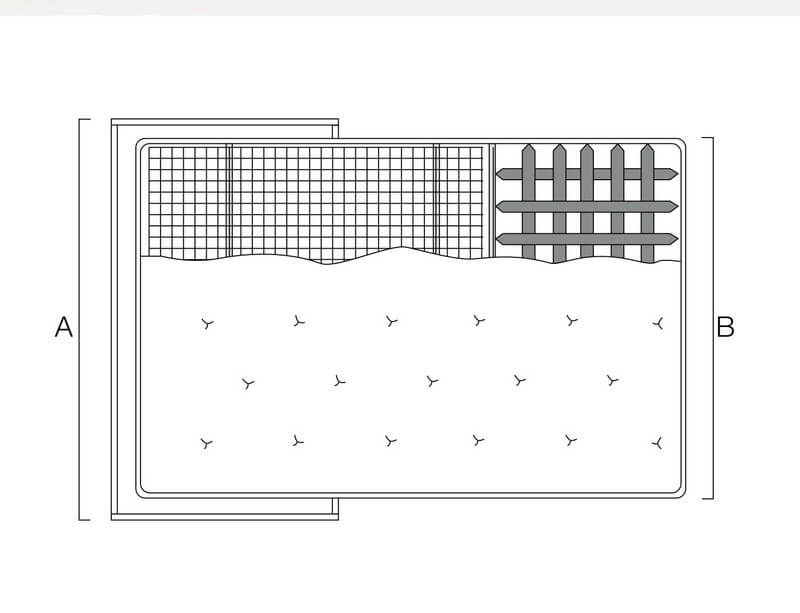

|PRODUCT||A||B||Recommended mattress size|
|Mec 119 Fast 182||182||165||160x196x14|
|Mec 119 Fast 162||162||145||140x196x14|
|Mec 119 Fast 142||142||125||120x196x14|
|Mec 119 Fast 122||122||105||100x196x14|
|Mec 119 Fast 92||92||75||70x196x14|
We recommend to periodically lubricate the highlighted parts, and in particular the areas between rivets and levers, in order to avoid noises in the opening and closing of the mechanism. A silicone lubricant spray is recommended.
