Duplex Superiore

Electrowelded transformable mechanism

TRANSFORMABLE MECHANISM, H14 MATTRESS

A mechanism for three-seater sofas that can convert to two single beds.  With a simple movement, the top part slides out forwards to facilitate the opening of a single bed; the bottom part has a system to slide and lift out the second bed, using a handle. Ultra-strong frame in furniture tubing painted with epoxy powders. Sleeping surface with fuse bonded.

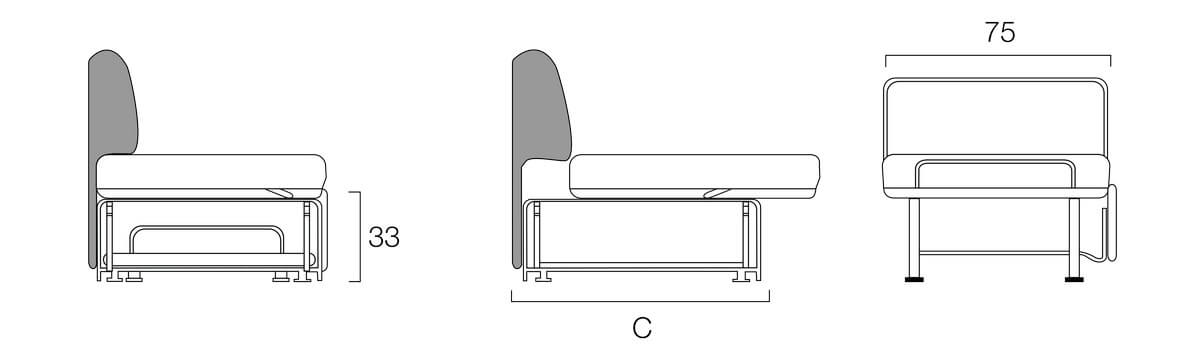

SIDE VIEWS

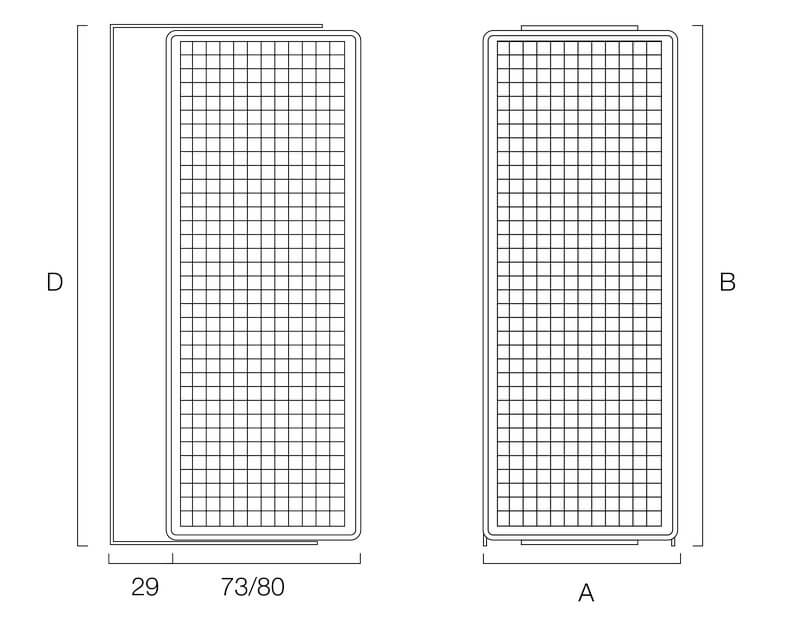

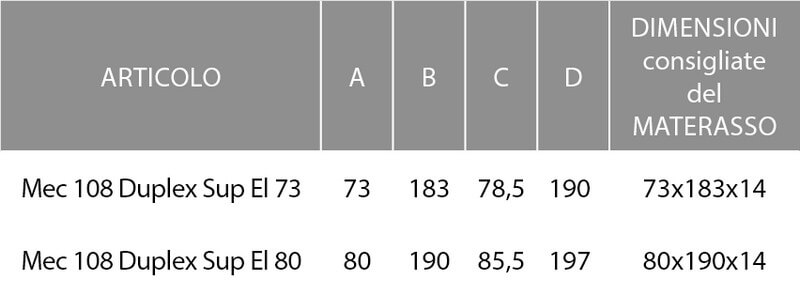

TOP VIEW AND SIZE CHART
AVAILABLE MATTRESSES FOR DUPLEX SUPERIORE ELECTROWELDED
BACKREST (mis. 73)

Art 02108 spa-dupl

ARMREST (mis. 73)

Art 02108 bra-dupl

Mattress stop accessory
BAYONET

Art. 02106 BF

BACKREST
BACKREST (mis. 73)

Art 02108 spa-dupl

ARMREST
ARMREST (mis. 73)

Art 02108 bra-dupl

MATTRESS STOP
Mattress stop accessory
BAYONET
BAYONET

Art. 02106 BF
